2019 SUZUKI 15 HP DF15ATHL2 OUTBOARD MOTOR

Description

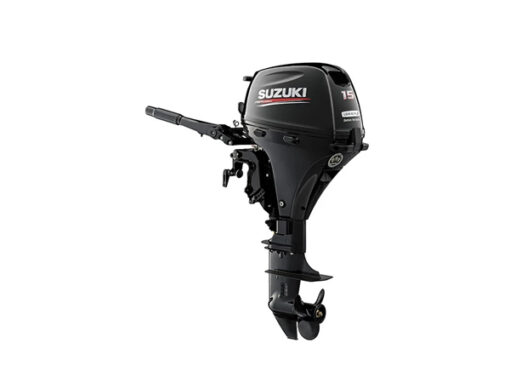

2019 Suzuki 15 HP DF15ATHL2 Outboard Motor
The all new Suzuki 15hp EFI is an excellent choice of power for medium to larger sized jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. This model features push-button electric start with a built-in 12V charging system. In addition, all portable Suzuki models 15hp and below that feature electric start also retain the thru-cowl manual start pull cord.  The DF15ATHL2 also includes Power Tilt – a handy feature when trolling.


Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Shallow Water Drive
Power Tilt with Tilt Pin (4 positions)
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
4-Blade High Thrust Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Suzuki 3-Year Warranty



MODEL
DF15ATHL2

SKU
DF15ATHL2-20

WEIGHT
123.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
15hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Power Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
327 cc (20.0 cubic inches)

BORE AND STROKE
60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE
5000-6000 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
33.8 fl oz. (1000 mL)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
12V 145W 12A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
4-Blade Aluminum 10″ Dia x 5.0″ Pitch
