2019 SUZUKI 9.9 HP DF9.9BTHS2 OUTBOARD MOTOR

Description

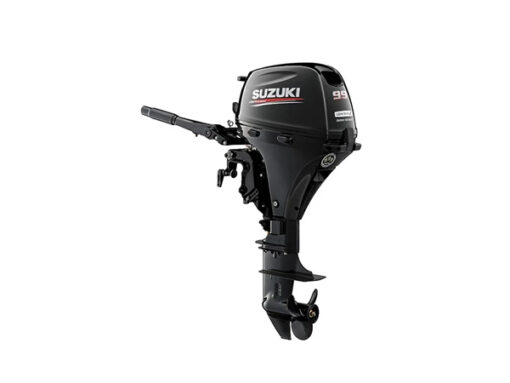

2019 Suzuki 9.9 HP DF9.9BTHS2 Outboard Motor
The all new Suzuki 9.9 HP EFI outboard motor model DF9.9BTHS2 is a 15 inch short shaft, electric start, power tilt and electronic fuel injection. The Suzuki 9.9 HP outboard engine is lightweight, compact and fuel efficient at 120 lbs. This 2-cylinder 4-stroke is remarkably smooth and quiet. The Suzuki 9.9hp outboard is an excellent choice for short shaft jon boats and skiffs, as well auxiliary power for sailboats and “kickers” for larger fishing boats. Suzuki designed the 9.9hp with user-friendly features such as the multi-function tiller handle which controls steering, throttle, throttle tension, and power tilt. Additionally, a one-touch steering tension control lever located on the front of the engine allows the user to quickly adjust steering friction. We offer the Suzuki 3-year warranty.


Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Power Tilt
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Suzuki 3-Year Warranty



MODEL
DF9.9BTHS2

SKU
DF9.9BTHS2-20

WEIGHT
120.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
9.9hp

SHAFT LENGTH
15″ (Short)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Power Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
327 cc (20.0 cubic inches)

BORE AND STROKE
60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE
5000-6000 RPM

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
33.8 fl oz. (1000 mL)

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
12V 145W 12A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.08:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
3-Blade Aluminum 9.25″ Dia x 10″ Pitch
